What happens if the neutral is not bonded?

If the ground is not bonded to neutral, then the entire ground circuit in the building becomes close to hot until the circuit breaker trips. Ground rods can have several ohms of resistance to ground, which is far too high to keep the ground to safe Voltage in such a situation.

Should ground be bonded to neutral?

To provide the low impedance path necessary to clear a ground-fault from the separately derived system, the metal parts of electrical equipment shall be bonded to the grounded (neutral) terminal (Xo) of the derived system.

What happens if neutral is not grounded?

Grounding neutral provides a common reference for all things plugged into the power system. That makes connections between devices safe(r). 2. Without a ground, static electricity will build up to the point where arcing will occur in the switchgear causing significant loss in transmitted power, overheating, fires etc.

What happens if neutral is not connected?

If a neutral wire gets disconnected, then the appliances will not work, the fan may get burn, choke in the tube may burn, and current starts flowing through the neutral wire. If you insert the tester in the neutral point (socket) then it will indicate like a phase.

Does neutral wire have to be connected?

Except in very rare situations, all neutral wires in a box must be connected. The neutral is how the current flows back to the supply, so if you don't connect a neutral to one fitting it won't work. You could connect three in one connector, then three in another, and have a link between the two.

Why Do We BOND Neutral & Ground in ELECTRICAL SERVICE PANELS?

What happens if neutral is not grounded in single line to ground fault?

If there were no any grounded neutral, no fault current would have been flow. We will apply Kirchhof's voltage law here to find the fault current. As fault current is only flowing in the faulted phase A, therefore we are only interested in finding Ia.

Can an open neutral cause damage?

An open neutral is terrible; in fact, it is dangerous. When there's a loose wire connection, the neutral wire becomes abnormally hot and damages appliances in their wake. Most fires related to an electrical fault have an open neutral to blame.

Can you get shocked by neutral wire?

If you touch the neutral wire in a live circuit, whether it be a lamp, an appliance or something else, it is the same as touching the active wire. It is only "safe" to touch the neutral wire when there is no current flowing, just as it is "safe" to touch the earth wire (when one exists).

What happens if you have an open neutral?

The voltage on a neutral wire is normally 0V (volts) on a live circuit. However, if a neutral wire is open, the voltage on the line side of this open neutral is 120V.

What happens if neutral wire touches ground?

In Short if neutral wire touches a earth wire,

An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.

What does bonded neutral mean?

With a bonded neutral generator, the neutral is connected to the frame of the generator. Safety code requires the neutrals to be averted away from the original source (your panel) and connect to the "first means of disconnect" when using the generator.

Can you combine neutral and ground in main panel?

The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

Does current flow through neutral wire?

When electrical current returns to the power supply substation through a neutral conductor (a power line or wire), it is normal for a small amount of current to also flow through the earth. This will result in a small voltage called neutral-to-earth voltage (NEV).

Why do you bond neutral and ground at main panel?

With ground and neutral bonded, current can travel on both ground and neutral back to the main panel. If the load becomes unbalanced and ground and neutral are bonded, the current will flow through anything bonded to the sub-panel (enclosure, ground wire, piping, etc.) and back to the main panel.

What happens if hot wire touches neutral?

A short circuit happens when a “hot” wire (black) touches another hot wire or touches a “neutral” wire (white) in one of your outlets. When these two wires touch, a large amount of current flows, creating more heat than the circuit can handle, so it shuts off.

Why do I have 120 volts on my neutral?

If you have a neutral wire removed from the neutral bus bar in your panel it is possible to see 120VAC on that wire if the circuit breaker for that circuit is turned on and there is a load connected to the circuit and load device is also turned on.

Can a loose neutral trip a breaker?

A circuit breaker can trip (or a fuse can blow) due to nothing more than a loose wire. This can happen even if the wire is still connected to an outlet, but the outlet's terminal screw isn't tightened enough.

What happens if neutral wire breaks in single phase?

What Happens if a Neutral Breaks? Because the power flow is disrupted or broken the voltage in the house will increase drastically. The voltage which usually leaves via the neutral would have to end up in other points. Electrical equipment will become overheated, spark and could potentially start a fire.

What is the effect of floating neutral?

In a floating neutral situation, the difference between the phases remains 240V, but the 0V reference (the neutral) no longer exists. This knocks voltage out of balance, so some appliances may draw more voltage than they should while others draw less. You might notice flickering lights.

Does neutral carry voltage?

The neutral wire is often said to have zero voltage on it. If you touch that wire on a live system, however, you will often find out very quickly that technically having zero voltage is very different from meaning there is no electricity present.

What is a floating neutral?

iTechworld portable generators are "floating neutral", meaning that the neutral circuit is not connected to the frame or to earth ground. This also means that both legs on the receptacle are hot legs, which is normal for floating neutral generators.

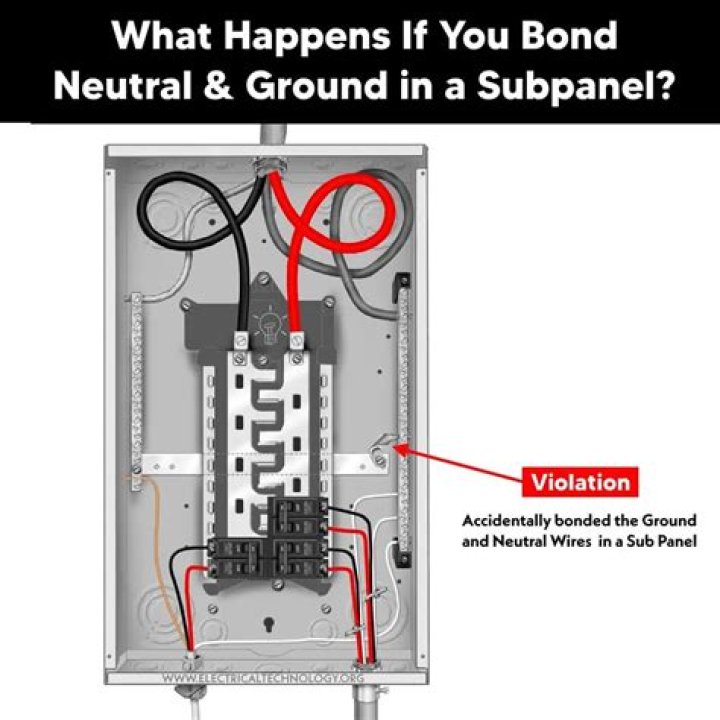

Why do you not bond a sub panel?

So, why do you separate the ground and neutral in a subpanel? Because when we bond them together, it gives your neutral wire (the one carrying electrical currents BACK to the source) multiple pathways. That's how the chassis of some equipment will become energized.
