What is double lugging?

Double lugging (some say double tapping, although this is not an entirely accurate description) is when more than one wire is terminated under a screw or connector on a circuit breaker or fuse block. Most circuit breakers are only designed and UL listed for one wire per connection.

Why is double lugging against code?

So what is a double lugged neutral? It's simple. This is when two grounded conductors, also called neutrals, or the white wires, are under one screw/terminal. This is a defect because the terminal is only listed for one grounded conductor.

How much does it cost to repair double lugging?

You can fix double-tapped breakers by installing a pigtail wire connection, adding an additional circuit breaker, a tandem breaker, or a breaker with a 2-pole rating. A double-tapped breaker costs about $150-$250 to fix.

Can you double lug a breaker?

Double tapped breakers are an unsafe condition in which multiple conductors are placed under the set screw of a single breaker. When multiple wires are connected to a breaker, you greatly increase the risk of a loose connection, which can lead to overheating, arcing, and electrical fires.

Can I put 2 wires in a circuit breaker?

When it's NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place.

Double lugging

Why is it bad to double tap a breaker?

The issue with double tapping is you could technically have a loose connection or an overloaded breaker since the breaker is not designed for two wires. A loose connection can potentially spark or arc. Furthermore, an overloaded breaker could continuously trip or overheat.

Are tandem breakers legal?

Tandem breakers are safe and legal to use only when the panel is designed for them and only in the slots that accept tandem breakers.

Can you double up neutrals?

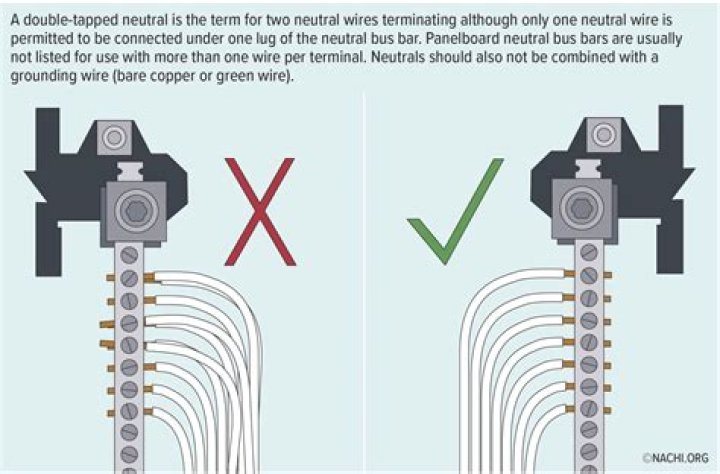

Double tapped neutrals can expand and contract enough to the point where the connection becomes loose. The loose connection could overheat and cause a fire. Check out these double tapped neutrals I found during an inspection. These connections loosened up over time causing arcing and overheating.

Can you pigtail neutrals in a panel?

Pigtails in a panel are fine...

Wire-splicing and pigtailing within a loadcenter cabinet (panel enclosure) is expressly permitted by NEC 312.8(A), and is quite safe (provided the splices are made up properly, of course):

Can you tie two wires one breaker?

When it's NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place.

Can neutral and ground wires be double tapped?

The AHJ tells me that neutrals cannot be double tapped, or that a neutral and ground cannot be set together. Thus a buss bar will need to be added because there are more breaker slots than neutral and ground bus holes. At least each circuit's neutral wire and ground wire should be able to be tapped in the same hole.

Can you double up neutrals on a neutral bar?

As long as both existing bars are connected by a link bar or other path you can use either side for neutrals. Grounds typically can be two and even three conductors to a hole, sized #14 or #12 and sometimes #10, and must be the same size. So if you need to make room you can double up on some grounds.

How many grounds can go under one lug?

While panel manufacturers will allow for up to three grounding conductors under a single lug, they typically only allow one neutral wire.

Can I put two ground wires on one lug?

Pigtailing: for grounds yes, for neutrals no. 2 or 3 grounds under a single lug: Decided by UL based on their testing. The approved action will be stated on the panel labeling.

Can neutral and ground be on the same bus bar?

The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

How many tandem breakers are allowed in a 100-amp panel?

Based on this formula, the maximum number of circuits allowed in a 100-amp 120/240-volt panelboard is 20.

Do tandem breakers share a neutral?

Unlike the standard/ single-pole breaker, a tandem breaker doesn't use a cable with three wires (2 hot and 1 neutral). Due to its physicalities, this double breaker is not compatible with having a shared neutral wire since it simply uses one power phase/busbar. This breaker can only handle two individual cables.

How many tandem breakers can you put in a 200 amp panel?

A 150-amp panel would allow a maximum of 30 circuit poles, and a 200-amp panel would allow a maximum of 40 circuit poles. For panelboards not manufactured as “lighting & appliance” panelboards, there is no limit to the number of circuit breakers allowed.

What breakers can be double tapped?

Only certain manufacturers of circuit breakers—such as Square D and Cutler Hammer—produce circuit breakers that can accommodate two wires. It's important to note, though, that not all of their circuit breaker products have this function. How could a double tap be dangerous?

Is a double tapped breaker a fire hazard?

Double taps are a fire hazard, and therefore should be addressed as a homeowner becomes aware of them. A double tap occurs when two wires are connected to a single circuit breaker that is only engineered to accept one wire (see photo below).

How many outlets can be on a circuit breaker?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

Can I put two wires on a 20 amp breaker?

So long as the wires are at least 12 gauge (since they are 20A breakers) and the breakers themselves are allowed to have 2 wires connected to them, there's nothing inherently wrong.

What is a piggyback circuit breaker?

A double circuit breaker takes the space of a single circuit breaker on a panelboard. Depending on local customs, they are called duplex, slimline, twin, half-height, half-inch, double and waferbreakers.

Can you tie 2 hot wires together?

Nothing. Two hots of same circuit - nothing should happen.
