Which prong in plug is hot?

The high voltage (about 120 volts effective, 60 Hz AC) is supplied to the smaller prong of the standard polarized U.S. receptacle. It is commonly called the "hot wire". If an appliance is plugged into the receptacle, then electric current will flow through the appliance and then back to the wider prong, the neutral.

Which side of 3 prong plug is hot?

The color code is standard in electrical wiring. The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

Which side of a plug is the hot wire?

Looking at the receptacle itself, the hot side is the side of the outlet the thinner prong plugs into. The thin prong is the hot wire, and the thick prong is the neutral wire.

Which is the hot wire on a 2 prong plug?

Which side of a 2-prong plug is positive? Because we use A/C current, prongs don't have have a positive and negative. Instead, the two prongs have a 'hot' and 'neutral' side. The wider prong connects to the neutral wire and the smaller prong smaller prong is the hot side of the circuit.

Is the wide prong on a plug hot or neutral?

The wide prong on the plug links the threaded base of light bulbs to the neutral terminal (the wider slot) in the receptacle. The hot side of the outlet (the side that can deliver a shock) is wired to the threaded socket if the wires are reversed.

Electric AC Polarity Explained & The Dangers of REVERSE POLARITY

Is wide or narrow hot?

The wider prong connects the neutral wires (wires carrying unused electricity back to the breaker panel), and the narrow prong connects the hot wires (wires carrying electricity from the panel to an outlet or a switch).

Why is one prong on a plug wider than the other?

Why One Prong Is Bigger. Polarized nongrounding-type plugs have one prong, the neutral, that's larger than the other to ensure that the hot wire, which is the smaller one, is tapped correctly. Electricity streams in a circuit, which is a closed path of components where electrons flow from a current source.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.

How do you tell which wire is positive and which is negative?

If you have a wire where both sides are the same color, which is typically copper, the strand that has a grooved texture is the negative wire. Run your fingers along the wire to determine which side has the ribbing. Feel the other wire which is smooth. This is your positive wire.

Which hole in an outlet is hot?

The first hole, or left hole, is called “neutral”. The second hole, or right hole, is called “hot”. The third hole is the ground hole. The hot hole is connected to the wire that supplies the electrical current.

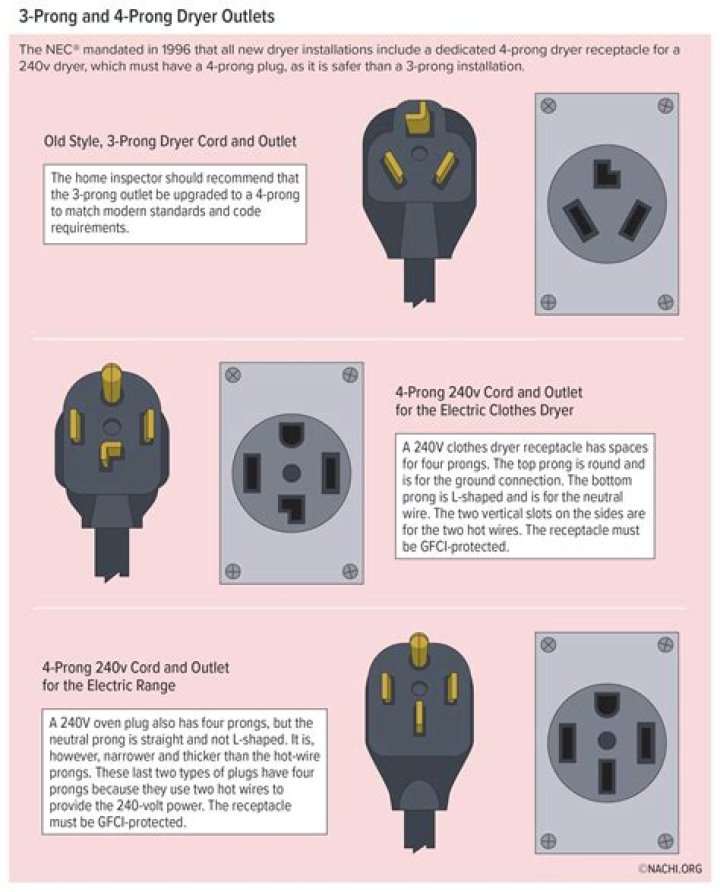

What wires go on a 3 prong plug?

The three wires are a hot wire, which should be black or sometimes red; a neutral wire, which should be white; and a ground wire, which should be green or bare.

Is the ribbed or smooth wire hot?

The ribbed side of the line cord indicates the neutral wire, the smooth side, the hot wire. If we are wiring a line cord plug, the ribbed wire would connect to the wider space or neutral space on the plug itself.

Why does my plug have a sideways prong?

20-amp receptacles have a horizontal slot branching off one of the vertical slots. Appliances, such as microwaves, often have 20-amp plugs and must be plugged into a 20-amp outlet. Electrical plugs designated as 20-amp will not fit into 15-amp outlets.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

Which wire is hot if both are black?

Here's a rundown of electrical wires: The black wire is the "hot" wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, it takes any unused electricity and current and sends it back to the breaker panel.

Which wire is hot red or black?

The protective ground must be bare, green or green-yellow striped. Hot (active) wires may be any other colors except these. However, common practice (per local electrical inspectors) is for the first hot (live or active) wire to be black and the second hot to be red.

What happens if you wire a light backwards?

But here's the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work, but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

Why do plugs have 2 holes in the prongs?

Rather than having deliberate gaps in the middle of the metal, the design used to feature semi-circular indents on either side of the plug. These indents were designed to hook the plug to the socket and prevent it from falling out.

Is the large prong black or white?

In Alternating Current, the black wire is hot, the white wire is neutral and green (or bare wire) is ground. The reason (ungrounded) plugs, such as a toaster, have one prong larger than the other is to ensure the hot wire is tapped correctly. The smaller prong is hot and the larger one is neutral.

Which wire goes to the wide blade?

White (neutral) wire, silver screw (wide blade).

Which prong is live and neutral?

The high voltage (about 120 volts effective, 60 Hz AC) is supplied to the smaller prong of the standard polarized U.S. receptacle. It is commonly called the "hot wire". If an appliance is plugged into the receptacle, then electric current will flow through the appliance and then back to the wider prong, the neutral.

Which prong is white wire?

White Wire: This is the NEUTRAL wire. This wire is connected on the Earth ground, however, provides the return path for the current that came from the hot wire. The prong of the neutral wire is longer compared to the hot wire to ensure that these two will not interchange.
